Technical Parameters
Profile:6060-T66 aluminum
Thickness:1.8mm
Local reinforcement:2.0mm
Heat insulation strip
PA66-GF25-S54 high quality heat insulation strip
standard configuration of heat insulation chamber filled with polyurethane sponge
Rubber strip
High performance EPDM foam composite sealing strip,
standard soft and hard composite co-extruded isobaric rubber strip
Profile thickness
Outer frame width is 91mm,heat insulation strip is 54mm;
Sash width is 100mm,
heat insulation strip is 54mm
Visible Surface
Outer frame is 39mm/
middle pole is 39mm/
opening sash 57mm
Applicable Size
Open sash width:600mm-800mm
height:600mm-2400mm
maximum weight:80kg
Glass Configuration
5mm+16A+5mm+16A+5mm
Opening Method
Glass sash:open to inside/tilt and turn inside/top-hung window open to inside/bottom-hung window open to inside
Basic Parameters
Heat resistance performance
AS/NZS4420.1 standard:
Uw1.4W/m² K
Watertight performance AS/NZ44201 standard:
600Pa
Airtight performance:
Level 5
Soundproofing performance ISO717 standard：
Rw up to 37dB
Hurricane performance：
4000Pa
The PA66 nylon insulation strip adopt advanced German extrusion technology for superb mechanical strengthen and weather resistance. With the resistance to UV aging, acid, alkali and corrosion, it delivers excellent thermal insulation, sound dampening and energy saving.
The handles of casement window comes with ergonomic designs, ensuring ease of use and adding a stylish element to your windows.
Expand your living space by connecting casement windows with other types, allowing for a larger opening area. You can customize the style of your residential area according to your preferences. Consult professional team of Zhonglian for guidance.
Our standard glass is double-layer transparent tempered glass. However, we also offer a variety of glass options to meet unique project requirements. Including single-layer glass, triple-layer glass, low-e glass, tempered glass, and laminated glass.

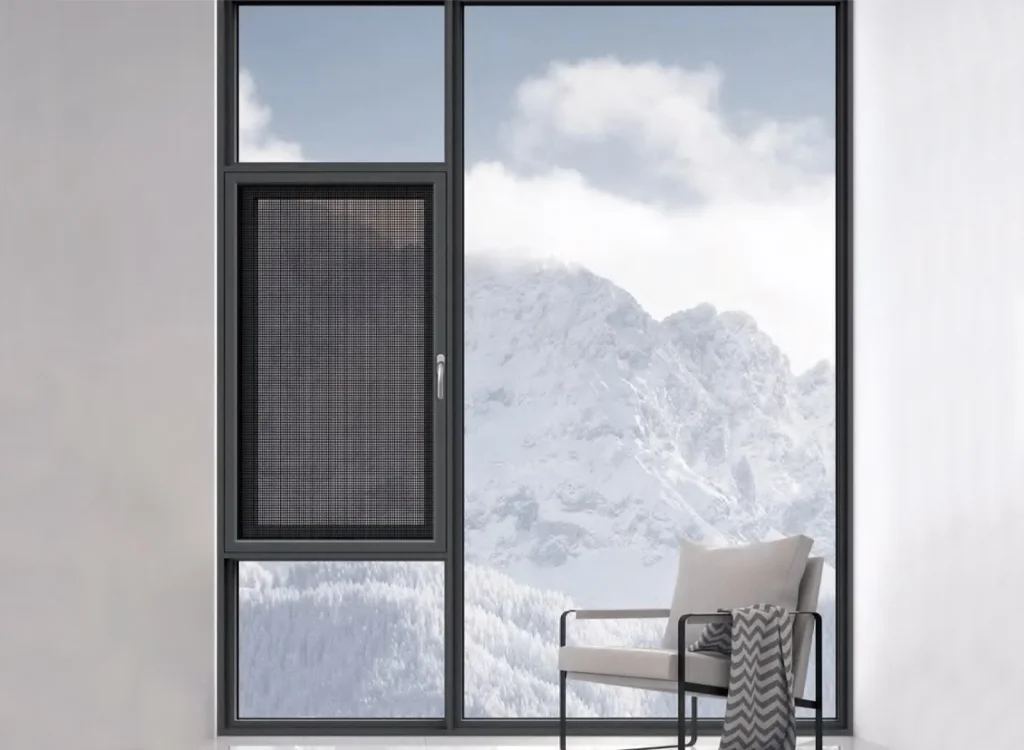

Installing high-transparency screen on casement window can greatly improve utilization efficiency. The screen not only allows more natural light and ventilation into the room, but also prevent insects from entering indoors.
The patterns of casement window adds a touch of elegance and charm to your house. WANJIA® offers various options of grille to suit your style and enhance the overall aesthetics.
The patterns of casement window adds a touch of elegance and charm to your house. WANJIA offers various options of grille to suit your style and enhance the overall aesthetics.
Contact Us to Start Your Tour!
Please tell us your individual needs and get a free quote directly from Zhonglian
Zhonglian 91 Series Aluminum Casement Window
Meets most application requirements
Greater energy conversion efficiency
Product prices are relatively more affordable
Get Product Catalog
If you want to get more details about our casement window collection, including types, colors, sizes, hardware and so forth. Please contact us.
Specification Details
- Combination Window
- Window Sash
- Hardware Handle
- Double/Triple Glass Cavity
- Insulation Strip
1. Large View
- Offer a wide and unobstructed view of the outdoor landscape. Allow for ample natural light to flood in.
- Provide a sense of openness and connection with the surroundings.
2. Combination Window
- The combination of casement and fixed windows adds a unique visual appeal to the house while increasing natural light interior.
- Create spacious and bright indoor feeling.
3. Window Sash
- Sash width:400mm-800mm sash height:400mm-1900mm maximum sash supporting:60kg.
- 5mm+16A+5mm+12A+5mm hollow glass. It can be also made 5mm+27A+5mm double glass.
4. Hardware Handle
- The Kinlong brand is as the standard configuration. Available options for choosing Hoppe, Cmech,VBH and G-U.
- Smooth operation, ergonomic comfort and durable performance.
5. Double/Triple Glass Cavity
- Adopt an intermediate sealing structure which is divided into two parts: drainage cavity and sealed cavity. Prevent the potential damage of bad sealing at the sealing position.
6. Insulation Strip
- 35.3mm multi-cavity insulation strip. Come in various materials to suit different needs.
- It is a crucial component for casement window. Design to seal gaps, prevent drafts and preserve heat.
Product Certification
Our products have obtained multiple international certifications, including Energy Star, CE certification, SGS certification, ISO certification, AAMA, IAS as well as the highest standard certifications from the United States and Australia.
